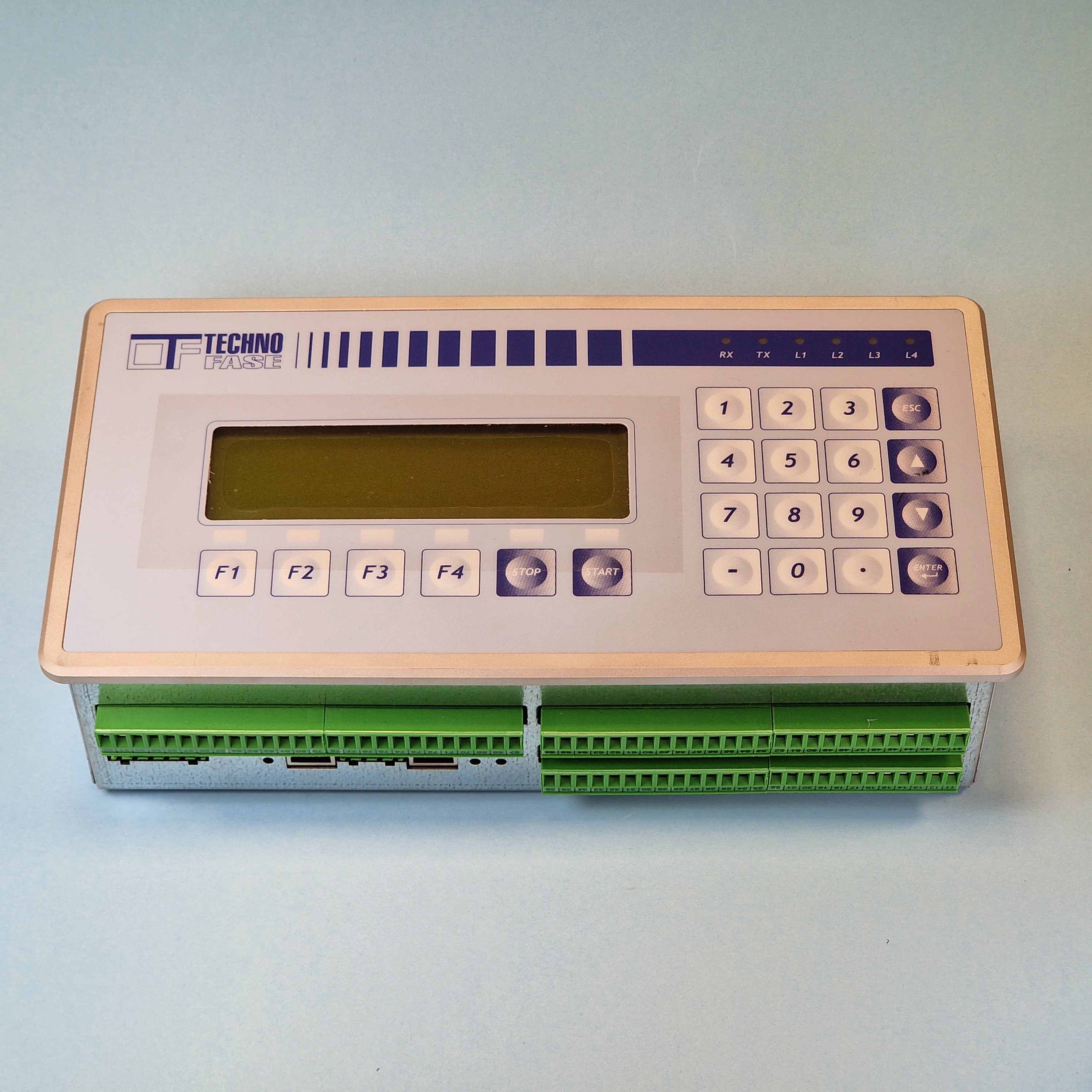

RCS2024

The RCS2024 controller is one programmable device with the main specification:
Supply:
20-30 VDC 0.4A

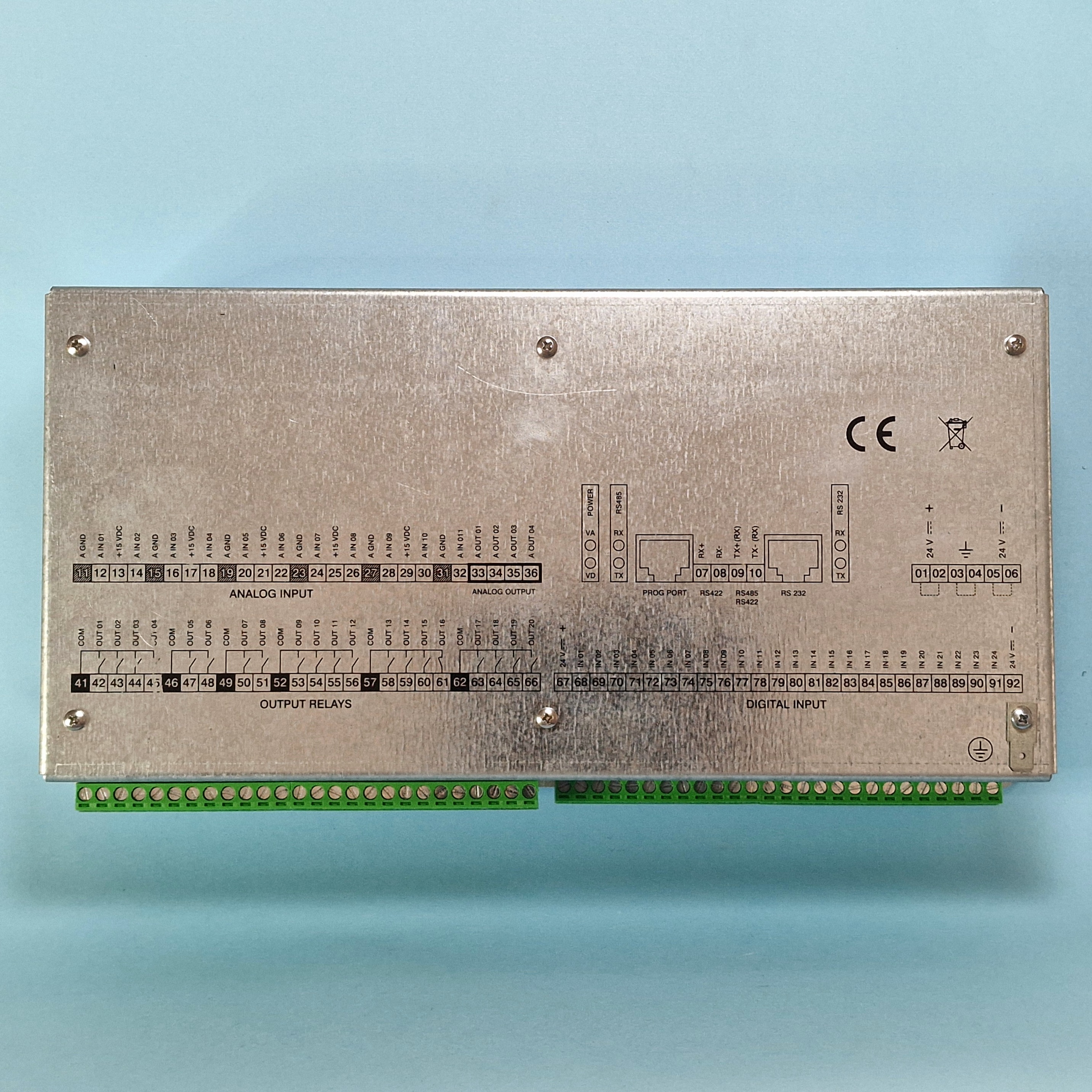

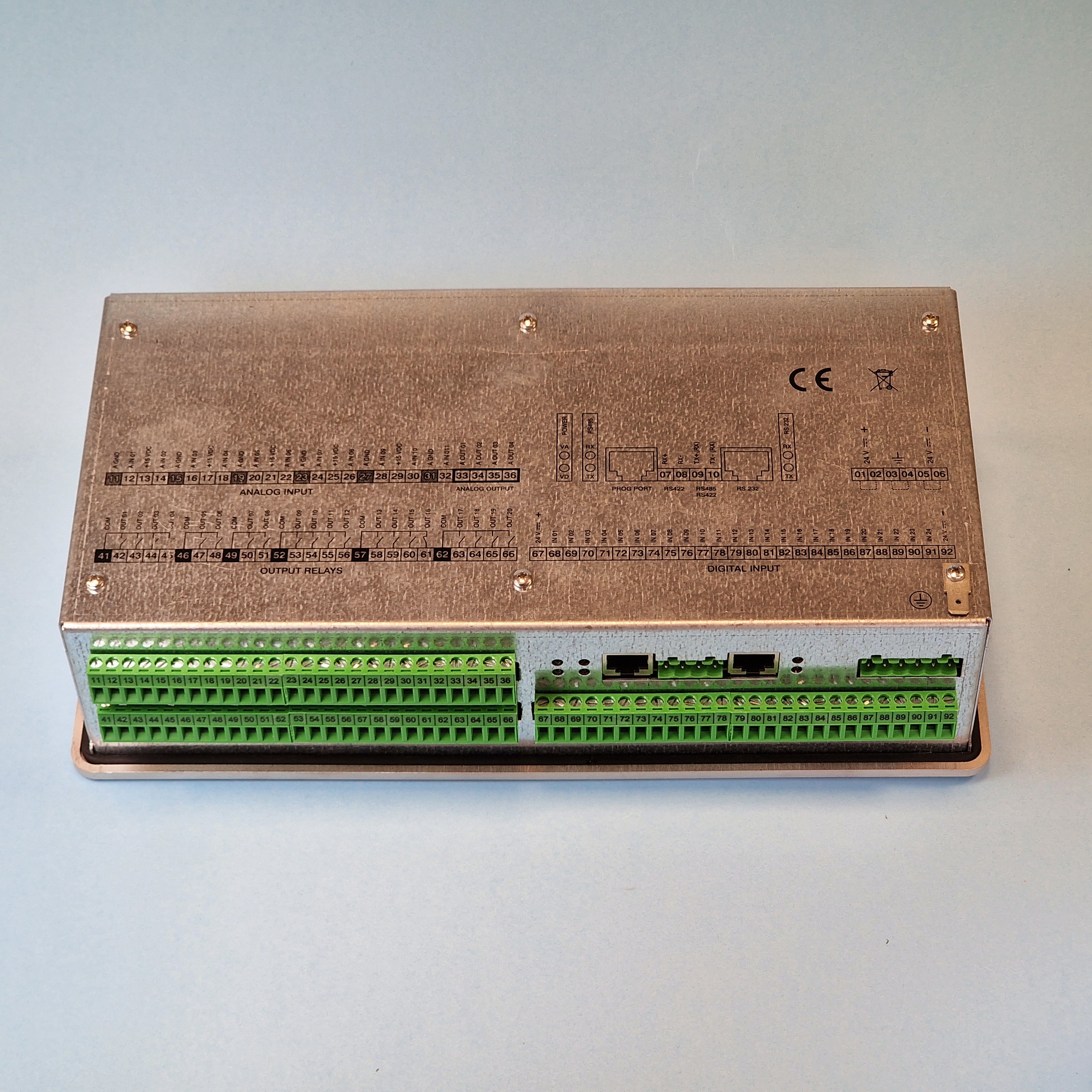

Analog Input:
11 (Voltage or current) @ 12 Bit
Digital Input:
24 (10-30VDC Optoisolated)
Relay Output:
20 (3A 230 VAC Relays)

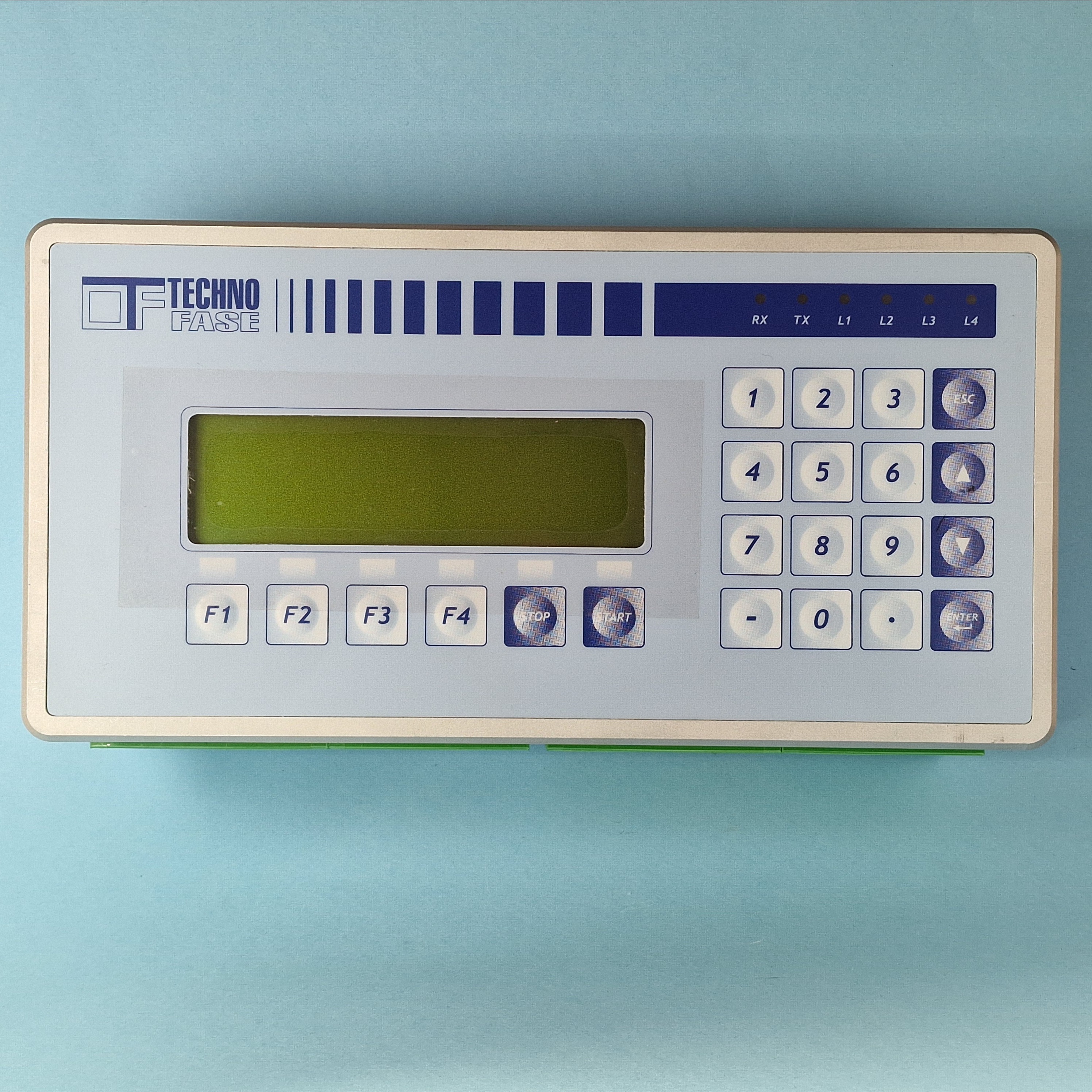

Display:
240x64 Graphic or 40x8 Caracter type
Keyboard:
4 Function + 4 Navigation + 10 Numeric
Communication:
1x RS485 2/4W Software selectable 1200-9600Pbs
1x RS232 with +5V Power supply (For Radiomodem)
1x RS232 for programming
Dimension:
295 x 150 x 85 mm
Temperature:
-30°C / +50°C Non condensating
